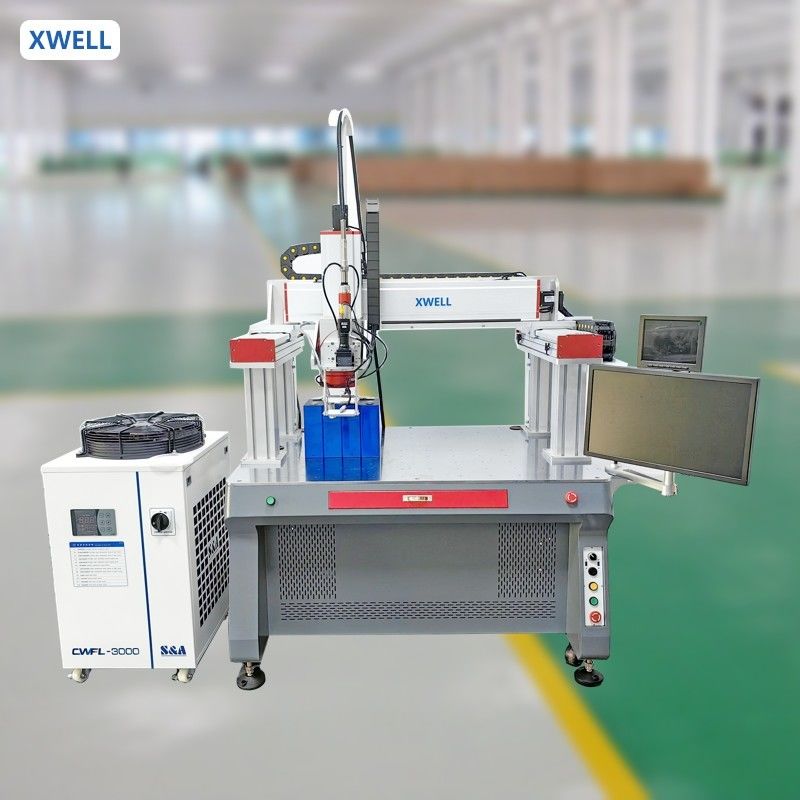

3000W Laser Welding Machine For Battery Pack Welding
Détails sur le produit:
| Lieu d'origine: | CHINE |
| Nom de marque: | XWELL |
| Certification: | CE |
| Numéro de modèle: | XW-1000W |
Conditions de paiement et expédition:
| Quantité de commande min: | 1pcs |
|---|---|
| Prix: | USD 10000 - 22000 / pcs |
| Détails d'emballage: | Boîte en bois |
| Délai de livraison: | 15-20 jours |
| Conditions de paiement: | T / T, Western Union, L / C |
| Capacité d'approvisionnement: | 100 pc par mois |
|
Détail Infomation |
|||
| Conformité: | Certifié CE | Composants de base: | Navire sous pression, moteur, roulement, PLC, moteur |
|---|---|---|---|
| Points de vente clés: | Fabrication flexible | Modèle: | XW-1000W |
| Avantage: | Précision de soudage | Numéro d'axe: | 4 axes |
| Puissance laser: | 1000W 1500W 2000W 3000W | Profondeur maximale de soudure: | 2 - 3 mm |
| Demande d'électricité: | 220V / 380V ± 5V50Hz / 40a | ||
Description de produit
Main feature:
1. The photoelectric conversion efficiency can reach 40%, and the power consumption is low;
2. Continuous 3000W pure fiber laser, which can penetrate 3mm materials for direct welding;
3. Precise servo system control to ensure welding accuracy.
Product functional characteristics:
1. Independent research and development design, high precision of machine tool. Having long service life with stability and reliability;
2. Equipped with high-response and high-precision servo motor;
3. International first-class quality fiber laser, many years of industrial application, long service life and maintenance free;
4. High-precision laser welding head, imported optical lens, fine focus, convenient adjustment, perfect welding;
5. The operation of the numerical control system is simple and easy to learn, and the requirements for the operator are low;
6. Welding mode input in various formats, powerful drawing and editing graphics functions;
7. Special welding software, welding process expert, data saving and calling function.
| Attribute | Value |
|---|---|
| Product name | automatic laser welding machine for metal stainless steel |
| Core Components | Pressure vessel, Motor, Bearing, PLC, Engine |
| Key Selling Points | Flexible Manufacturing |
| Model | XW-1000W |
| Advantage | Welding Precision |
| Axis number | 4 axis |
| Laser power | 1000W 1500W 2000W 3000W |
| Maximum depth of weld | 2 - 3 mm |
| Electricity demand | 220V/380V±5V50Hz/40A |
Guangdong Xwell Technology Co., Ltd. is a comprehensive company, have 21 years experience in new energy battery industry. In order to create more economic and offer the one-step service, we collect all the knowledge and resource to service our customers with complete solution in battery industry in our field including the battery laboratory equipment, battery production equipment, battery pack equipment, laser welding machine, plastic ultrasonic welding machine, metal ultrasonic spot welding machine, wire ultrasonic welding machine, and most of the accessories, and we had exported them to more than 60 countries all over the world in the past 10 years. We have passed CE safety certificated system. With rich technology and capital resource, we pay high attention to the new product innovation. Every year we have at least one new design machine. Creating value for customers first is the only way to achieve self-worth. We look forward to cooperating with you!
Copper, aluminum, iron, nickel, or their alloy metal welding, especially suitable for the welding process of aluminum bars or nickel to nickel connections in Prismatic batteries.
Documents Support: All Documents for clearance customs support: Contract, Packing list, Commercial Invoice, Export declaration and so on.
Display on a video display by connecting the device. Clear welding point.
- With the function of moving up and down, it can weld irregular products
- The Z axis has brake function
- Large-stroke gantry has a larger welding range
- Argon gas blown out of the air pipe doesn't damage to material surface
Equipped with 1.5P chiller. It can meet the requirements for a long time. High power welding is more stable.
Standard cabinet, four-axis travel.
With different water machines and different welding heads, the stroke and welding effect will be different.
Desktop welding and handheld welding, multifunctional machine. One machine with multiple functions, customized fixtures, and multiple customized welding stations, work faster and more accurately.
- 1000W--220V
- 1500W--380V
- 2000W--380V
- 1000W--220V
- 1500W--380V
- 2000W--380V
- 1000W--220V
- 1500W--380V
- 2000W--380V
| Device name / model | XW-1000W | XW-1500W | XW-2000W |
|---|---|---|---|
| Maximum laser power | 1000W | 1500W | 2000W |
| Laser type | fiber-optic laser | ||
| Laser wavelength | 1080±5 | ||
| Sport mode | continuous | ||
| Adjust frequency | 1000HZ | ||
| Thickness of welding material (depending on the material) | ≤4.0 mm | ≤6.0mm | ≤8.0mm |
| Fiber core diameter | 5-7(50μm) | ||
| Fiber length | 10m-20m | ||
| Spectroscopy | Precision energy splitting or high-speed time splitting | ||
| Light mode | Red light | ||
| Welding gun head | Youmir/WSX | ||
| Total power | 8KW | 6KW | 12KW |
| Chiller cooling power | 1.5P | ||
| Cooling method Water-cooled ambient temperature | 20℃-40℃ | ||
| electricity demand | 220V/380V±5V50Hz/40A | ||
| Dimensions / net weight | Host computer: 139*139*186CM, 407kg cooling-water machine: 79*56*108CM, 93.5kg |
||
| Comparison project | Argon arc welding | YAG laser welding | Continuous laser welding |
|---|---|---|---|
| Heat input | Very high | Low | General |
| Deformation, undercut | Big | Small | Small |
| Firmness | It is good | General | It is good |
| Follow-up | Polishing | Slightly polished or not polished | Slightly polished or not polished |
| Welding speed | General | More than 2 times argon arc welding | More than 2 times argon arc welding |
| Applicable material | Stainless steel, carbon steel, galvanized sheet, aluminum, copper | Stainless steel, carbon steel, galvanized sheet, aluminum, copper, nie, gold, silver | Stainless steel, carbon steel, galvanized sheet, aluminum, copper, Nie |
| Consumables | More consumables | General supplies | Less consumables |
| Operating | Complex | General | Simple |
| Safety | Unsafe | Safety | Safety |
| Surroundings | Not environmentally friendly | Environmental protection | Environmental protection |
| Fault tolerance | It is good | It is good | It is good |
| Swing welding | No | No | Have |
| Spot width | No | 0.1-3MM | 0.1-5MM |
| Welding quality | Difference | General | Well |
| Argon consumption | 15PSI | 30PSI | 40PSI |
| Melting depth | High | low | High |
| Applicable thickness | 2-10MM | 0.2-3MM | 0.2-5MM |
| Radiation | High | No | No |
