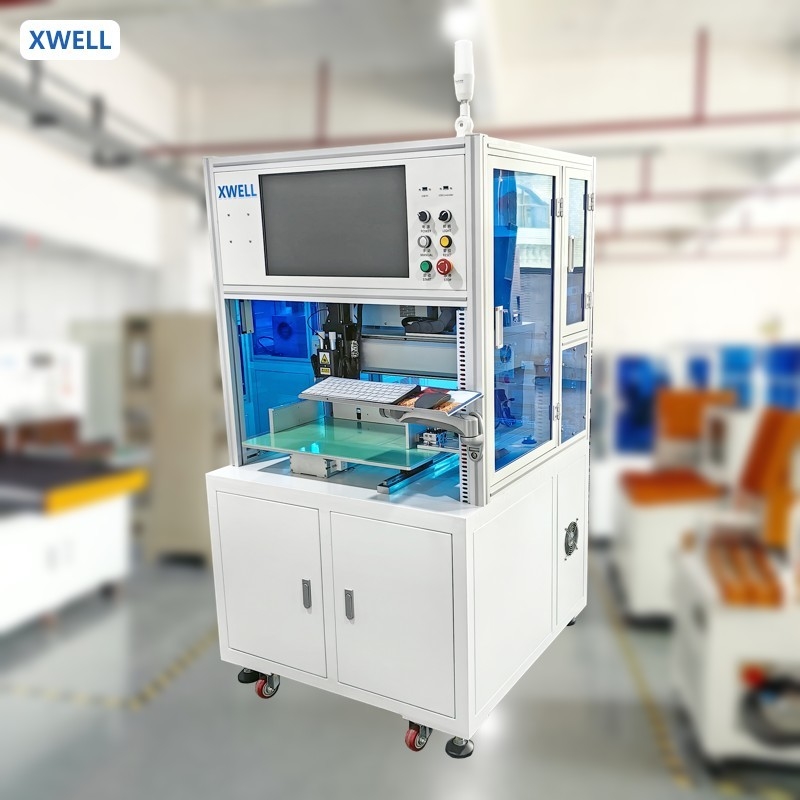

5000A Electric Spot Welder 18650 21700 Automatic Battery Spot Welding Machine
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | XWELL |
| Certification: | CE |
| Numéro de modèle: | MD-ADW |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 pièces |
|---|---|
| Prix: | USD 11000 - 15000 / pcs |
| Détails d'emballage: | Boîte en bois |
| Délai de livraison: | 10-15 jours |
| Conditions de paiement: | T/T, Western Union, LC |
| Capacité d'approvisionnement: | 100pcs par mois |
|
Détail Infomation |
|||
| Origine du produit: | Chine | Numéro de tête: | 2 PCS |
|---|---|---|---|
| Système d'exploitation: | Système inclus | Interface utilisateur: | Écran tactile |
| Source d'alimentation: | Le système d'alimentation électrique doit être équipé d'un système d'alimentation électrique. | Efficacité: | 3800 pièces par heure |
| Poussée de l'équipement: | 500*350 (mm) environ 760 à 18650 cellules | Capacité de charge maximale: | 200 à 400 pièces (batterie au lithium 18650 standard) |
| Système opérateur: | système intégré + écran homme-machine | Mode de transmission: | étape + ceinture + rail de guidage linéaire de précision importé (servo + vis en option) |
| Mettre en évidence: | 5000A lithium battery spot welder,automatic 18650 spot welding machine,21700 battery spot welder with warranty |
||
Description de produit
5000A Electric Spot Welder 18650 21700 Automatic Battery Spot Welding Machine
Description
Automatic battery spot welding machines play a key role in cylindrical battery pack assembly lines. When multiple cells are connected in series or in parallel to form a battery pack, the spot welding machine can quickly and accurately weld the tabs of the battery cells to the connecting pieces (such as nickel sheets), thereby forming a battery pack with a specific voltage and capacity to meet the power requirements of various applications.
Features
- Support breakpoint start, automatic start, and manual start.
- Cold solder joint and sealing off alarm.
- Easy program, support matrix, array and point program, can store 100 group parameters.
- Welding needle abrasion alarm.
- Build-in welding current monitor, can display real time welding current.
- Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other
- lithium battery packs spot welding.
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
