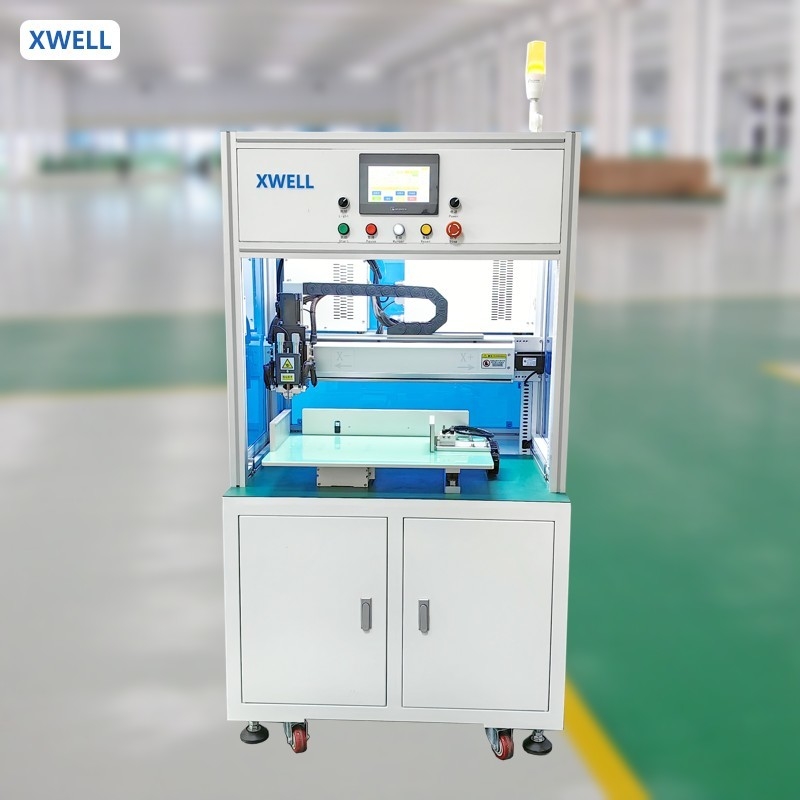

Automatic 18650 Cells Single Side Spot Welding Machine
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | XWELL |
| Certification: | CE |
| Numéro de modèle: | MD-ADW |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 pièces |
|---|---|
| Prix: | USD 11000 - 15000 / pcs |
| Détails d'emballage: | Boîte en bois |
| Délai de livraison: | 10-15 jours |
| Conditions de paiement: | T/T, Western Union, LC |
| Capacité d'approvisionnement: | 100pcs par mois |
|
Détail Infomation |
|||
| Types de piles: | Cellule cylindrique | Numéro de tête: | 2 PCS |
|---|---|---|---|
| Système d'exploitation: | Système inclus | Interface utilisateur: | Écran tactile |
| Source d'alimentation: | Le système d'alimentation électrique doit être équipé d'un système d'alimentation électrique. | Efficacité: | 3800 pièces par heure |
| Poussée de l'équipement: | 500*350 (mm) environ 760 à 18650 cellules | Capacité de charge maximale: | 200 à 400 pièces (batterie au lithium 18650 standard) |
| Système opérateur: | système intégré + écran homme-machine | Mode de transmission: | étape + ceinture + rail de guidage linéaire de précision importé (servo + vis en option) |
| Mettre en évidence: | 18650 battery spot welder,automatic lithium battery welder,single side spot welding machine |
||
Description de produit
Automatic 18650 Cells Single Side Spot Welding Machine
This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding.
Features :
1.Support break point start, support automatic start and manual start mode conversion.
2.It has a false spot welding and out of spot welding alarm function.
3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
4.Welding needle replacement forecast reminder.
5.Own welding current monitoring system, real-time monitoring of welding current.
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
