Automatic 18650 Battery Cells Single-Side Spot Welding Machine For Cylindrical Battery Pack Assembly
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | XWELL |
| Certification: | CE |
| Numéro de modèle: | MD-ADW |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 pièces |
|---|---|
| Prix: | USD 11000 - 15000 / pcs |
| Détails d'emballage: | Boîte en bois |
| Délai de livraison: | 10-15 jours |
| Conditions de paiement: | T/T, Western Union, LC |
| Capacité d'approvisionnement: | 100pcs par mois |
|
Détail Infomation |
|||
| Types de piles: | Cellule cylindrique | Numéro de tête: | 2 PCS |
|---|---|---|---|
| Système d'exploitation: | Système inclus | Interface utilisateur: | Écran tactile |
| Source d'alimentation: | Le système d'alimentation électrique doit être équipé d'un système d'alimentation électrique. | Efficacité: | 3800 pièces par heure |
| Poussée de l'équipement: | 500*350 (mm) environ 760 à 18650 cellules | Capacité de charge maximale: | 200 à 400 pièces (batterie au lithium 18650 standard) |
| Système opérateur: | système intégré + écran homme-machine | Mode de transmission: | étape + ceinture + rail de guidage linéaire de précision importé (servo + vis en option) |
| Mettre en évidence: | 18650 battery spot welding machine,automatic cylindrical battery welder,single-side lithium battery welder |
||
Description de produit

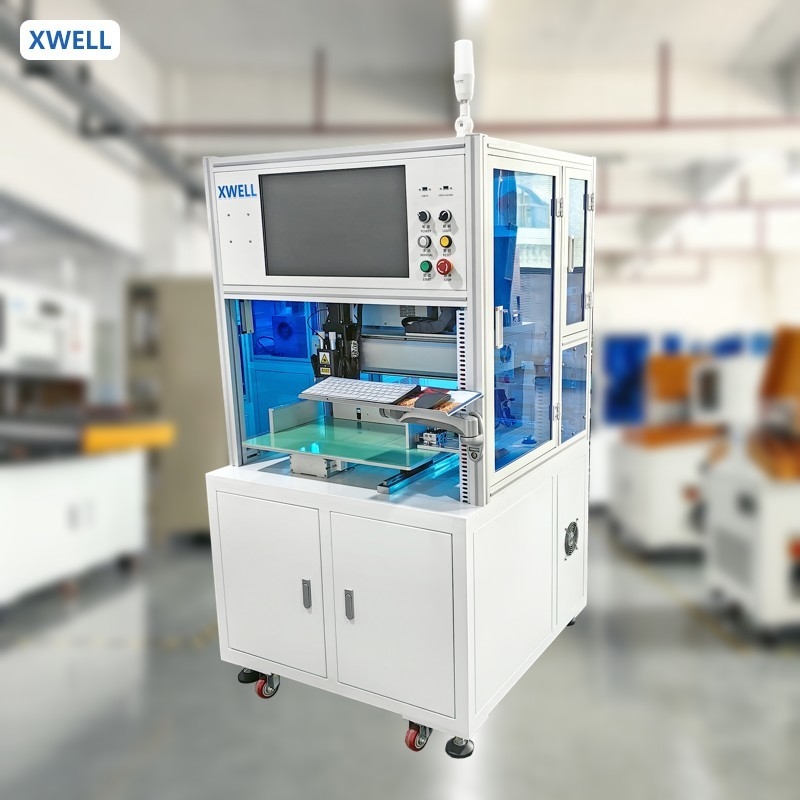

Automatic 18650 Battery Cells Single-Side Spot Welding Machine For Cylindrical Battery Pack Assembly
Product description:
The machine is suitable for automatic 18650 battery cells single-side spot welding of nickel strips in cylindrical battery components, the highly automated human-machine interface makes it very easy to operate. Through manual loading and simple settings, the battery pack welding process can be completed, and to ensure that the welding tension band or nickel between the battery and the nickel strips is greater than 30N.
Scope of application:
Automatic 18650/ 21700/ 26650/ 32650 cylindrical battery pack single-side spot welding machine for battery assembly, it is suitable for energy storage battery, electric bicycle batteries, power battery…
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
